Two Stage Hydraulic Car Auto Lift 1.5 Ton Transmission Jack
Product Details:
| Place of Origin: | Zhejiang , China |
| Brand Name: | YEEDA |
| Certification: | CE |
| Model Number: | YD05-004A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 pcs |
|---|---|
| Packaging Details: | Wood Box |
| Delivery Time: | 20DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 500PCS/MONTH |
|
Detail Information |
|||
| Applicable Industries:: | Machinery Repair Shops, Vehicle Repair | Model No.: | YD05-004A |
|---|---|---|---|
| Name: | 1.5T Two Stage Hydraulic Transmission Jack | Capacity: | 1500KGS |
| Color: | Red,blue, Customized Color Acceptable | Surface Treatment: | Powder Coating |
| MOQ: | 20pieces | Delivery Time: | 20 Days After Received Deposit |
| Packaging: | Crate | Payment Term: | T/T 30% Deposit, 70% Before Shipment |
| Test Video: | Provided | Certification: | CE |
| Warranty Of Core Components: | 1 Year | After Warranty Service: | Video Technical Support, Online Support, Spare Parts |
| Highlight: | Two Stage 1.5 Ton Transmission Jack,Hydraulic 1.5 Ton Transmission Jack,1.5t Two Stage Transmission Jack |
||
Product Description

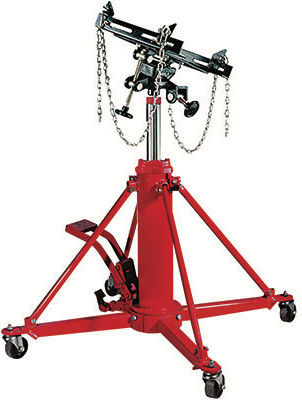

1.5T Double Ram Hydraulic Transmission Jack

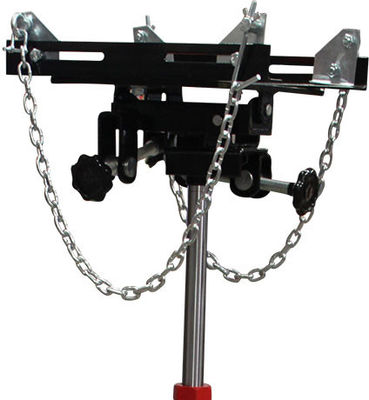

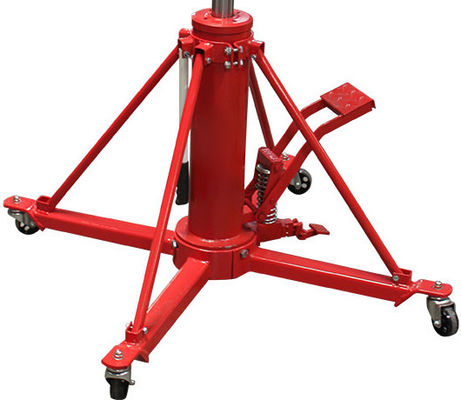

1 Ton 2 Stage Telescoping Transmission Jack offers high end transmission jack features at an affordable price. This full-featured transmission jack has a 4-way adjustable saddle with independently adjustable fingers for greater flexibility and safety. It also has smooth rolling, rubber coated steel casters with locks for easy operation. The internal shaft retention system reduces potential leak points for added durability. Foot operated pump and release pedals provide hands-free lifting and lowering control.
Specification:
Model No.:YD05-004A
Capacity:1500 kgs
Lifting Height --1st Stage : 3300lbs(1500kgs)
Lifting Height--2nd Stage : 2200lbs(1000kgs)
Lowered Height : 37"(940mm)
First Stage Height : 56"(1422mmm)
Full Raise Height : 74.75"(1898mm)
Base Dimension: 31" x 31" (787 x 787mm)
G.W........88kgs
N.W........80kgs
Packing Size.........15" x 22.4" x 34.6"(38 x 56 x 88cm)
