1 Pump Red Pallet Heavy Duty 0.5Ton Engine Hoist And Stand
Product Details:
| Place of Origin: | Zhejiang , China |
| Brand Name: | YEEDA |
| Certification: | CE |
| Model Number: | YD01-012 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 pcs |
|---|---|
| Packaging Details: | Carton Box or Crate |
| Delivery Time: | 30-45DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 300PCS/MONTH |
|
Detail Information |
|||
| Applicable Industries:: | Lifting The Goods From Pallet | Model No.: | YD01-012 |
|---|---|---|---|
| Name: | Hydraulic Folding Engine Crane | Capacity: | 0.5 Ton |
| Rated Lifting Moment: | 470-2150MM | Max. Lifting Height: | 2150MM |
| Color:: | Red,blue, Customized Color Acceptable | Surface Treatment:: | Powder Coating |
| MOQ: | 20pieces | Delivery Time: | 15 Days After Received Deposit |
| Packaging: | Carton Box Or Crate | Payment Term: | T/T 30% Deposit, 70% Before Shipment |
| Test Video: | Provided | Certification: | CE |
| Warranty Of Core Components: | 1 Year | After Warranty Service: | Video Technical Support, Online Support, Spare Parts |
| Highlight: | 0.5Ton Engine Hoist And Stand,1 Pump Engine Hoist And Stand,0.5Ton Heavy Duty Shop Crane |
||
Product Description

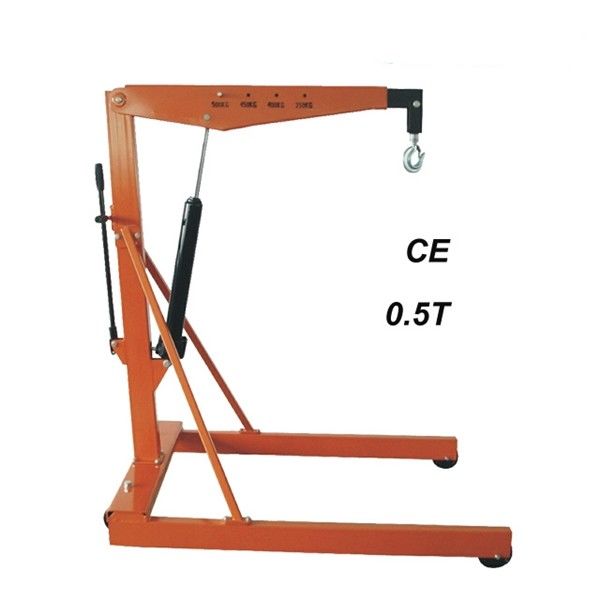

YD01-012-----Hydraulic Heavy-Duty Engine Crane - Euro Style
0.5 Tonne Lifting Capacity
Overview
This engine crane has a long stroke lifting ram, a single action pump with a maximum load capacity of 500kg. Very simple to use manual hydraulic operation. The jib extends to the desired lifting capacity of 350kg, 400kg, 450kg or 500kg secured by a single locking pin. Mounted on 4 caster wheels & T-bar handle for excellent manoeuvrability around the workshop.

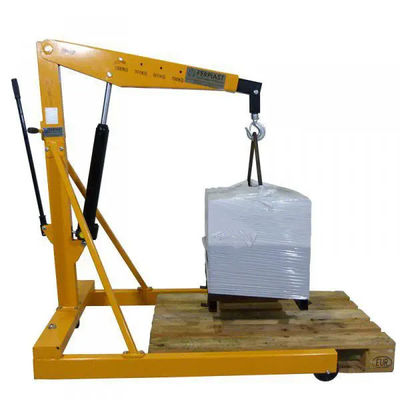

The lifting range is 0-2150mm so an engine can be lifted clear out of the engine bay with little effort. With great stability of its wide legs, this crane can also be used to lift machines or other heavy items, making for an excellent piece of equipment for the workshop or warehouse.
The lifting range is 0-2150mm so an engine can be lifted clear out of the engine bay with little effort. With great stability of its wide legs, this crane can also be used to lift machines or other heavy items, making for an excellent piece of equipment for the workshop or warehouse.
Features
- Industrial engine crane
- 0.5 tonne lifting capacity
- Heavy duty hydraulic pump
- Adjustable boom in four positions for lifting
- Robust steel fabricated legs with structural supports
- 4 x large caster wheels for easy mobility
- Tilting & swivelling lifting hook
- T-bar handle with grips on rear of hoist allows greater manoeuvrability control

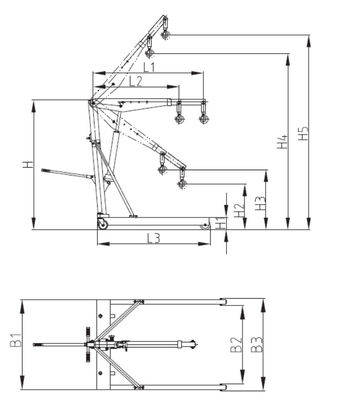

| Model: | YD01-012 |
| Capacity: | 500KGS |
| Base width(outside): | 950mm |
| Base width(inside) | 800mm |
| Max.boom length | 1360mm |
| Min.boom length | 1060mm |
| Max.hook height | 2150mm |
| Min.hook height | 470mm |
| Net Weight/pc | 86kgs |
| Package | Brown box + Pallet |
| Qty/Pallet | 5pcs |
| Pallet Size | 140 x 104 x 87CM |
| N.W./G.W.-Pallet | 408/450KGS |
